A ground water tank is an important component of water supply and building utility systems, providing a dedicated storage area for collecting and supplying water before it is distributed to different parts of a facility. Because these tanks are commonly constructed below ground level, their structural design requires careful consideration of concrete walls, slabs, foundations, waterproofing, reinforcement, water pressure, and surrounding soil conditions.
Accurate technical drawings are essential for communicating the dimensions, layout, structural configuration, and construction details of an underground water storage tank. For civil engineers, structural engineers, architects, contractors, MEP professionals, CAD technicians, and construction professionals, detailed CAD drawings can provide useful references for preparing and coordinating water tank structures.
In this article, we provide a Ground Water Tank Plan and Section Details DWG AutoCAD reference that can be used to study the general arrangement, plan view, section details, structural components, dimensions, and construction interfaces of a ground water tank.
What Is a Ground Water Tank?
A ground water tank is a storage structure designed to hold water at or below ground level. In building and infrastructure projects, it is commonly used as part of a water supply system to provide storage before water is pumped or distributed to the required facilities.
Ground water tanks are generally constructed using reinforced concrete because the material can provide the required structural resistance and durability when properly designed and protected. The tank may include a base slab, side walls, top slab, internal compartments, access openings, pipe penetrations, waterproofing systems, and other supporting components.
The exact configuration depends on the required storage capacity, available site area, water demand, structural conditions, groundwater level, soil properties, and applicable engineering standards.
Function of a Ground Water Tank
The primary function of a ground water tank is to provide temporary or permanent water storage for a building, industrial facility, residential development, commercial complex, or other infrastructure.
The stored water can be used to maintain a reliable supply during periods of variable demand or when the incoming water supply is insufficient. The tank can also provide a controlled source of water for pumping systems, domestic water distribution, irrigation, firefighting systems, or other project-specific applications.
The tank structure must be designed to accommodate the pressure exerted by stored water while also considering external soil pressure and groundwater conditions when the tank is empty or partially filled.
Download Ground Water Tank Plan and Section Details DWG AutoCAD
Proper Ground Water Tank Plan and Section Details DWG AutoCAD drawings are useful technical references for understanding the layout, dimensions, construction details, access openings, and structural components of reinforced concrete underground water tanks. These drawings are particularly relevant for civil engineers, structural engineers, architects, contractors, CAD technicians, BIM coordinators, and construction professionals involved in water storage and infrastructure projects.

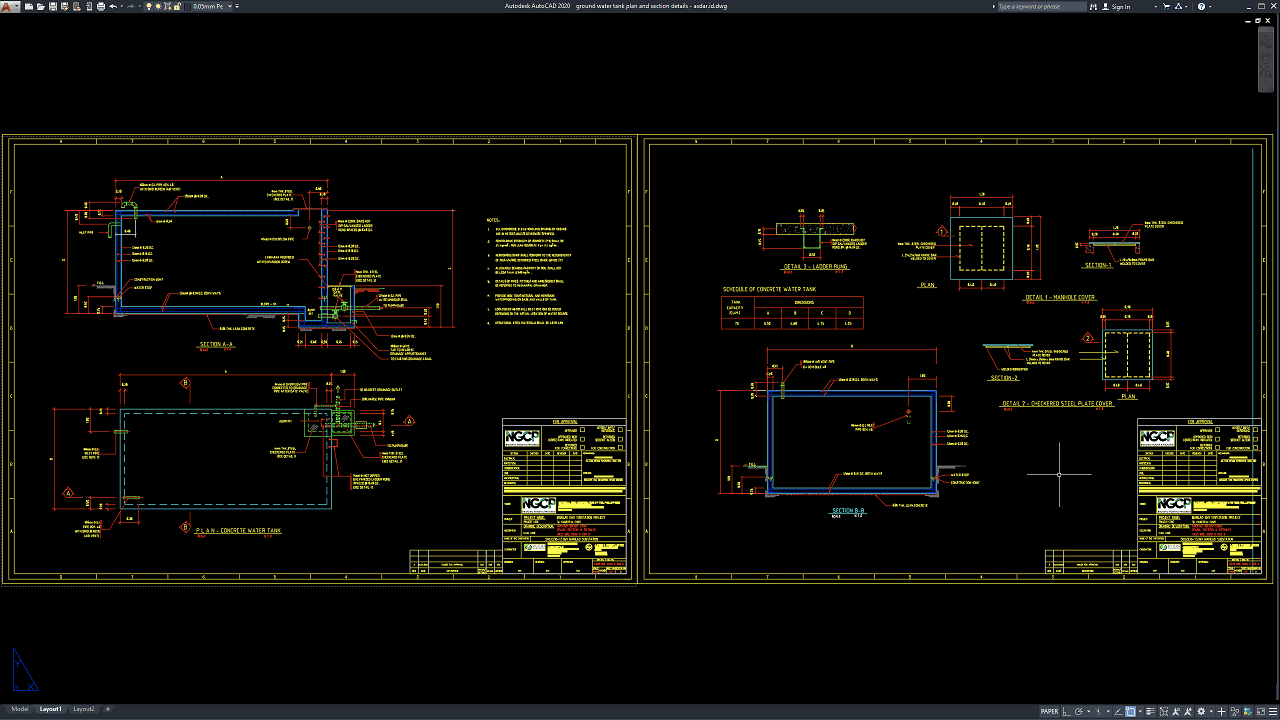

As shown in the drawing, the CAD sheet presents detailed concrete water tank plan and section views, including the main tank layout, tank wall and slab sections, pipe penetrations, water level references, access openings, and construction dimensions. The drawing also includes a concrete water tank schedule that provides dimensional information for the tank configuration.
The plan view of the concrete water tank illustrates the overall tank arrangement and the position of important components around the structure. Pipe connections, access areas, wall boundaries, and other technical references are indicated within the plan. These details help coordinate the underground tank with associated water supply and drainage systems.
The drawing also provides section views through the ground water tank, showing the relationship between the tank walls, base slab, top slab, surrounding ground, internal water space, and pipe connections. Section A-A and Section B-B help clarify the vertical configuration, construction levels, wall thicknesses, slab arrangements, and connection details that may not be fully visible in the plan view.
Several additional construction details are shown on the sheet, including a ladder rung detail, manhole cover detail, and checkered steel plate cover detail. These components provide access to the underground tank for inspection, maintenance, and cleaning. The detailed views show their dimensions and connection arrangements, making them useful references during structural and fabrication documentation.
The drawing also contains technical notes and material references associated with the concrete water tank construction. These notes, together with the plan and section drawings, provide supporting information for understanding waterproofing, concrete construction, access components, pipe interfaces, and other requirements shown in the CAD documentation.
Incomplete or inaccurate Ground Water Tank Plan and Section Details may lead to problems such as incorrect tank dimensions, improper pipe positioning, inadequate access arrangements, construction conflicts, leakage risks, and difficulties during maintenance. Proper coordination between structural engineers, civil engineers, contractors, architects, CAD technicians, and MEP professionals is therefore important when developing underground water tank documentation.
Detailed AutoCAD DWG files allow engineers and CAD technicians to review and adapt the tank plan, section views, dimensions, access openings, ladder details, manhole covers, steel plate covers, pipe connections, and structural components according to specific project requirements and applicable engineering standards. The drawing shown provides a practical reference for ground water tank design, concrete water tank details, underground water storage, water tank plan and section, manhole cover details, tank access ladder, reinforced concrete tank construction, structural drafting, and construction documentation.
