Heliports are essential facilities in aviation infrastructure projects because they provide safe landing and takeoff areas for helicopters in various locations such as hospitals, airports, military facilities, commercial buildings, and emergency response centers. Proper heliport planning is very important to ensure operational safety, efficient aircraft movement, and compliance with aviation standards.
In this article, we share a reference for Heliport Layout Plan and Section Details DWG AutoCAD that can be used by architects, engineers, drafters, contractors, students, and construction professionals as a technical drawing reference for aviation and infrastructure projects.
What Is a Heliport?
A heliport is a designated area specifically designed for helicopter landing and takeoff operations. Unlike conventional airports, heliports generally require smaller operational areas but still need precise planning and safety considerations.
Heliports are commonly built on rooftops, hospitals, industrial facilities, military bases, offshore platforms, and urban infrastructure projects where fast air transportation access is necessary.
A complete heliport design usually includes landing pads, safety zones, lighting systems, drainage systems, access roads, and supporting operational facilities.
Importance of Heliport Layout Planning
Heliport layout planning is one of the most important aspects of helicopter infrastructure design. Proper layout planning ensures safe helicopter maneuvering, clear operational zones, and efficient access for emergency or transportation purposes.
Engineers and designers must consider landing area dimensions, safety clearances, wind direction, load capacity, and operational requirements during the planning process.
Well-designed heliport layouts also improve operational efficiency and reduce potential safety risks during helicopter landing and takeoff activities.
Download Heliport Layout Plan and Section Details DWG AutoCAD
Proper heliport planning and structural design are essential to ensure safe, efficient, and reliable helicopter operations in aviation infrastructure projects. Engineers and designers must consider landing pad dimensions, structural load capacity, wind exposure, safety zones, drainage systems, lighting layouts, and material quality during the planning process.
Incorrect heliport or structural planning can cause operational hazards, drainage problems, structural damage, or reduced aviation safety performance. Therefore, accurate technical drawings and proper engineering calculations are very important to ensure long-term safety, operational efficiency, and reliability of heliport facilities.
Detailed AutoCAD DWG files also allow engineers to modify and adapt the design according to project specifications and construction standards. The notes and descriptions in the drawing are written in Spanish, so you may need to translate them first in order to fully understand the contents of the drawing.
The drawing file shared in this article is available in DWG AutoCAD format and can be used as a reference for steel structure and construction projects. This file is compatible with various AutoCAD versions and can be edited according to your project requirements and technical standards.
For those of you who prefer a simpler and faster download experience on asdar.id, I also provide a Premium Member Download service that allows direct access to the original file. This way, you will not be disturbed by excessive advertisements or multiple redirect pages during the download process. If you are interested, please register HERE. Please download the Heliport Layout Plan and Section Details DWG AutoCAD file below:

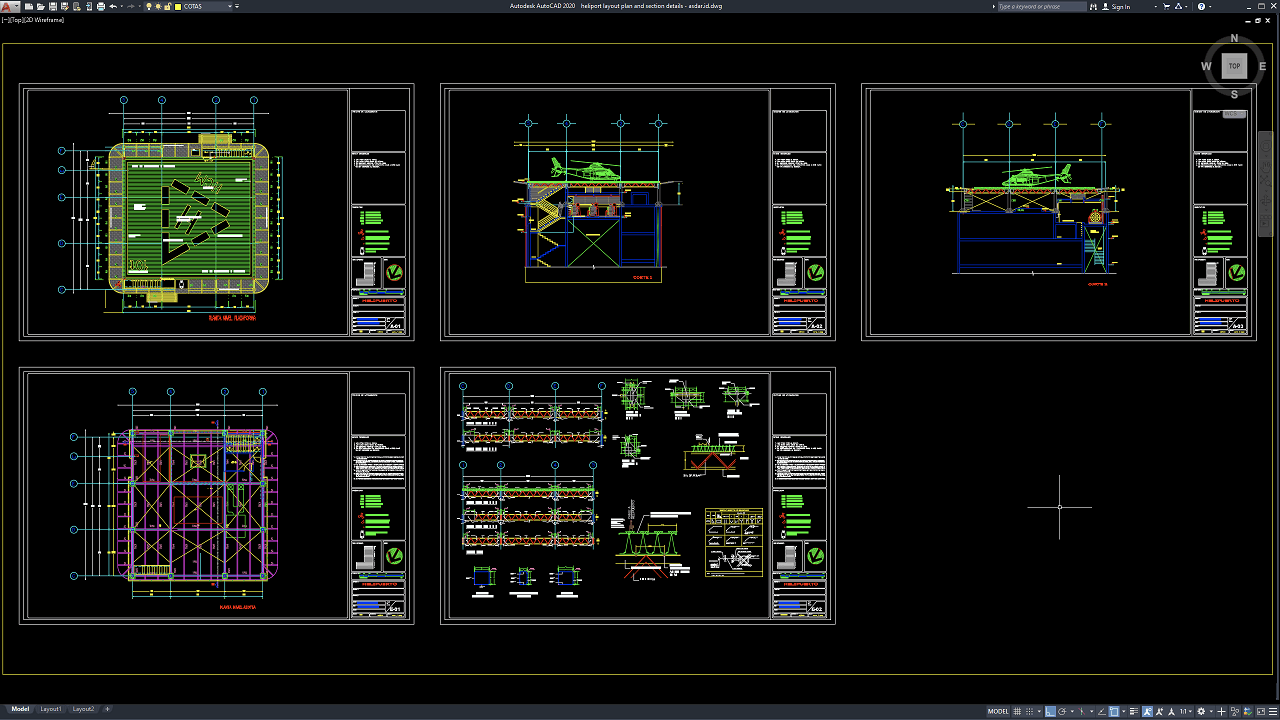

Heliport Layout Plan and Section Details DWG AutoCAD
