Bridge abutments are important structural components that support the ends of a bridge and connect the bridge superstructure with the approach roadway. In addition to carrying vertical loads from the bridge deck, abutments can also retain the approach embankment and transfer structural forces safely into the foundation.
Accurate engineering drawings are essential for defining the geometry, dimensions, reinforcement, foundation arrangement, bearing locations, and connection between the bridge superstructure and substructure. For civil engineers, structural engineers, bridge designers, contractors, surveyors, and CAD technicians, detailed CAD references can be useful for studying bridge abutment construction and structural detailing.
In this article, we provide a Bridge Abutment Plan and Section Details DWG AutoCAD reference that can be used to study the general arrangement, plan views, sectional details, dimensions, and structural components of bridge abutments.
What Is a Bridge Abutment?
A bridge abutment is a structural element located at the end of a bridge. It supports the end of the bridge superstructure and provides a transition between the bridge deck and the approach roadway or embankment.
Unlike an intermediate bridge pier, an abutment is generally positioned at the beginning or end of the bridge span. Depending on its configuration, it can consist of a stem wall, backwall, wing walls, footing, bearing support, approach slab, drainage components, and other structural elements.
The design of an abutment depends on the bridge type, span arrangement, soil conditions, retained earth pressure, hydraulic conditions, seismic requirements, and loads transferred from the superstructure.
Function of a Bridge Abutment
The primary function of a bridge abutment is to support the end of the bridge superstructure and transfer the resulting loads safely to the foundation and supporting soil. It also provides a transition between the elevated bridge deck and the roadway or ground behind the structure.
Another important function is retaining the approach embankment. The abutment and associated wing walls help prevent surrounding soil from moving into the bridge opening while maintaining the required roadway geometry.
Abutments can also accommodate bridge bearings, expansion or movement provisions, drainage components, and approach slabs. The exact arrangement depends on the structural and functional requirements of the bridge.
Download Bridge Abutment Plan and Section Details DWG AutoCAD
Proper Bridge Abutment Plan and Section Details DWG AutoCAD drawings are important technical references for understanding the layout, dimensions, structural arrangement, bearing locations, wing walls, foundation, and connection details of bridge abutments. These drawings are particularly useful for civil engineers, structural engineers, bridge designers, contractors, CAD technicians, and construction professionals involved in bridge substructure design and documentation.

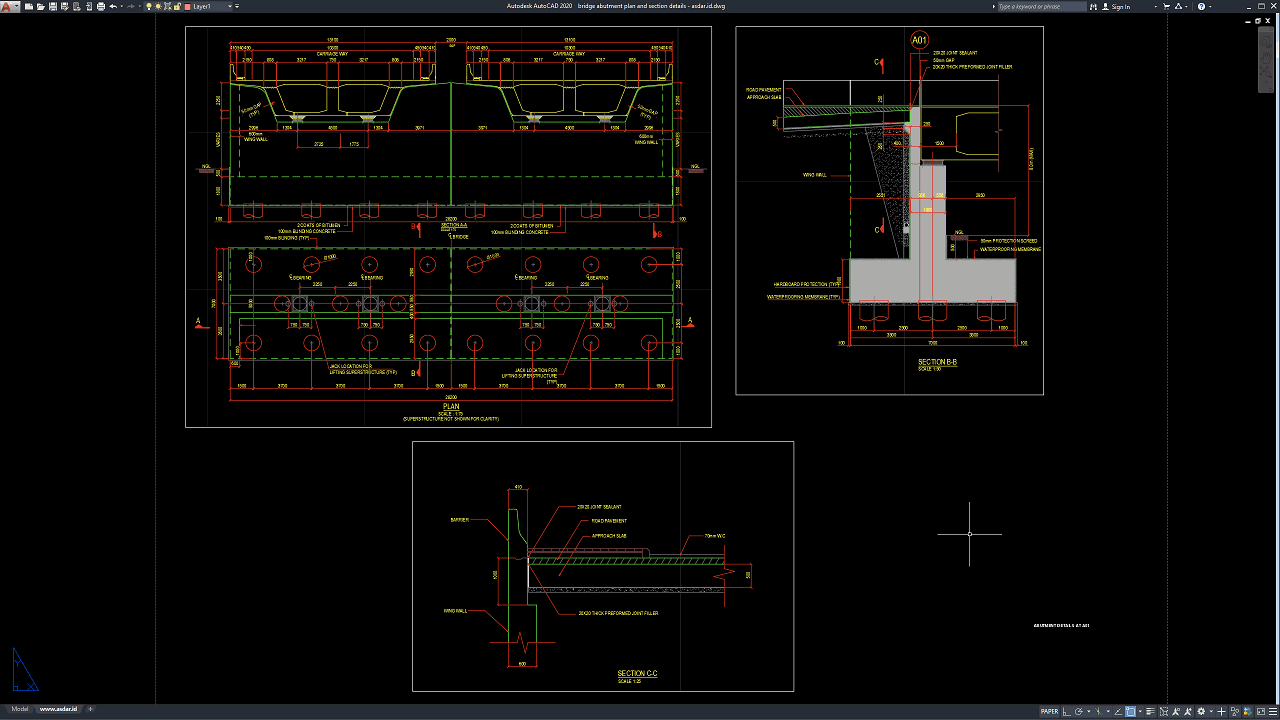

As shown in the drawing, the CAD sheet presents detailed bridge abutment plan and section views, including the abutment layout, carriageway arrangement, wing walls, bearing positions, support locations, foundation elements, and dimensional references. The plan view identifies multiple bearing locations, structural support points, wing walls, and jack locations for lifting the superstructure, while the associated views illustrate the relationship between the bridge deck and abutment structure.
The drawing also includes detailed Section B-B and Section C-C views. Section B-B illustrates the abutment wall, wing wall, foundation footing, approach slab, road pavement, waterproofing membrane, protection screed, joint sealant, and other connection components. Section C-C provides additional information about the wing wall, approach slab, road pavement, barrier, construction joint, and associated dimensions. These sections help clarify how the abutment connects with the bridge approach and surrounding structural elements.
Detailed dimensional annotations, bearing references, structural support locations, wing wall dimensions, footing sizes, construction joints, waterproofing components, and approach slab details provide useful information for coordinating the bridge superstructure with its supporting substructure. The drawing also identifies areas for jacking or lifting the superstructure, which can be important for bridge maintenance and bearing-related works.
Incomplete or inaccurate Bridge Abutment Plan and Section Details may result in incorrect bearing alignment, unsuitable wing wall positioning, foundation conflicts, improper approach connections, drainage or waterproofing problems, and difficulties during construction or maintenance. Accurate engineering drawings and proper coordination between structural engineers, civil engineers, bridge designers, surveyors, and contractors are therefore important for developing a stable and constructible bridge abutment system.
Detailed AutoCAD DWG files allow engineers and CAD technicians to review and adapt abutment dimensions, bearing arrangements, wing wall layouts, foundation geometry, approach slab details, waterproofing components, construction joints, and support locations according to specific project requirements and applicable engineering standards. The drawing shown provides a practical reference for bridge abutment plan and section design, bearing layout, wing wall details, foundation detailing, approach slab connections, waterproofing details, superstructure support, structural drafting, and bridge construction documentation.
