Foundation design for high-voltage substation equipment requires accurate coordination between structural engineering, electrical engineering, equipment installation, geotechnical conditions, anchor bolts, reinforcement, grounding systems, cable routes, and construction tolerances. Unlike an ordinary building footing, an electrical equipment foundation must be designed around the dimensions, loads, support points, and installation requirements of the equipment it carries.
In this article, we share a reference for Siemens COMPASS Foundation Details DWG AutoCAD that can be useful for civil engineers, structural engineers, electrical engineers, substation designers, EPC contractors, quantity surveyors, rebar detailers, BIM coordinators, CAD technicians, construction managers, and engineering students.
The drawing can provide a practical reference for substation foundation design, reinforced concrete detailing, equipment foundation engineering, structural engineering services, BIM coordination, construction cost estimation, quantity takeoff, and high-voltage infrastructure construction.
What Is a Siemens COMPASS Foundation?
A Siemens COMPASS foundation is a structural foundation designed to provide stable support for Siemens COMPASS electrical equipment installed as part of a high-voltage substation project. The foundation transfers equipment loads safely into the ground while maintaining the precise elevations, alignment, anchorage, and structural stability required for installation and operation.
Depending on the actual equipment configuration and project requirements, the foundation may incorporate reinforced concrete footings, pedestals, slabs, anchor bolts, embedded plates, equipment support points, cable openings, grounding connections, and surrounding civil works.
The final foundation dimensions and reinforcement should always be determined from approved equipment data, structural calculations, geotechnical information, and project specifications.
Importance of Equipment Foundation Design
Accurate equipment foundation design is critical because electrical equipment often requires precise installation tolerances.
An incorrectly constructed foundation may cause equipment misalignment, anchor bolt conflicts, unsuitable elevations, insufficient support, difficulties connecting conductors or cables, and costly modification work during installation.
Proper design helps coordinate structural capacity with actual equipment geometry while providing suitable access for erection, inspection, and maintenance.
For EPC substation projects, resolving foundation requirements before concrete placement can significantly reduce construction risk.
Download Siemens COMPASS Foundation Details DWG AutoCAD
Proper Siemens COMPASS Foundation Details DWG AutoCAD drawings are essential for accurately coordinating reinforced concrete foundation geometry, equipment support pedestals, anchor bolts, reinforcement layouts, concrete levels, and installation interfaces for high-voltage substation equipment. Civil engineers, structural engineers, electrical engineers, EPC contractors, equipment installers, rebar detailers, and construction teams must carefully coordinate foundation dimensions, reinforcement spacing, anchor bolt locations, pedestal positions, and equipment centerlines to achieve a stable, accurately positioned, and constructible equipment foundation.

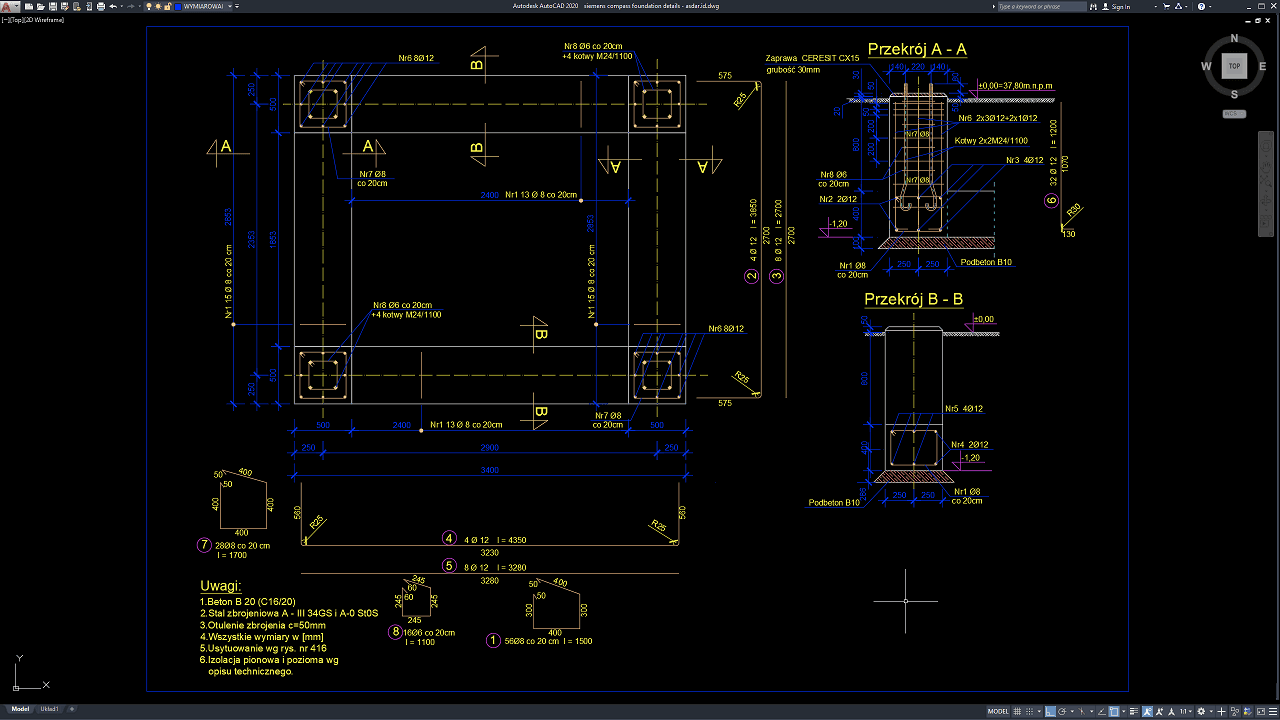

Detailed drawings such as Siemens COMPASS foundation plans, reinforced concrete layouts, pedestal reinforcement details, anchor bolt arrangements, Sections A-A and B-B, rebar details, concrete levels, and dimensional references help engineering and site teams understand the complete foundation configuration before reinforcement installation and concrete placement begin. As shown in the drawing, the foundation consists of a rectangular reinforced concrete arrangement with four corner support pedestals, an overall plan width of approximately 3400 mm, detailed reinforcement bar locations, and equipment anchorage points. The sectional drawings also illustrate the vertical foundation geometry, reinforcement arrangement, M24/1100 anchor bolts, a 30 mm CERESIT CX15 grout layer, and B10 blinding concrete beneath the foundation.
Incomplete or inaccurate Siemens COMPASS Foundation Details may result in incorrectly positioned anchor bolts, unsuitable equipment alignment, inadequate reinforcement, dimensional discrepancies, pedestal location errors, and costly modifications during electrical equipment installation. Accurate structural documentation and proper coordination between structural engineers, electrical engineers, equipment suppliers, EPC contractors, rebar contractors, surveyors, and site supervisors are therefore important for achieving reliable foundation construction and precise installation of substation equipment.
Detailed AutoCAD DWG files also allow engineers and contractors to review and modify foundation dimensions, pedestal geometry, reinforcement spacing, anchor bolt positions, concrete levels, sectional details, and material specifications according to project-specific equipment requirements and applicable structural standards. The drawing shown also specifies B20 (C16/20) concrete, reinforcing steel requirements, and approximately 50 mm concrete cover, providing a practical reference for Siemens COMPASS equipment foundation design, reinforced concrete detailing, anchor bolt coordination, rebar planning, substation civil works, and high-voltage infrastructure construction documentation.
