Wall panelling is widely used in residential, commercial, hospitality, office, retail, healthcare, and institutional interiors to improve appearance, protect wall surfaces, control acoustics, conceal building services, and create a more refined architectural finish. Depending on the project, wall panels may be manufactured from timber, MDF, plywood, laminate, veneer, gypsum, metal, stone, composite materials, or specialist acoustic products.
In this article, we share a reference for Wall Panelling Details DWG AutoCAD that can be useful for architects, interior designers, contractors, joinery specialists, quantity surveyors, BIM coordinators, CAD technicians, construction managers, developers, and architecture students.
The drawing can provide a practical reference for interior wall panelling design, architectural detailing, custom joinery, wall cladding construction, commercial interior design, BIM coordination, construction cost estimation, quantity takeoff, and interior fit-out documentation.
What Is Wall Panelling?
Wall panelling is a system of decorative or functional panels installed over an existing wall surface or attached to a supporting framework.
The panels may cover an entire wall, only the lower portion, or selected feature areas depending on the architectural concept. They can be arranged vertically, horizontally, in grids, with grooves, mouldings, trims, shadow gaps, or other decorative patterns.
Wall panelling may be used purely for visual enhancement, but many systems also provide practical benefits such as wall protection, acoustic improvement, thermal performance, concealed services, and easier maintenance.
In commercial projects, wall panelling can also reinforce branding and create a consistent interior identity.
Importance of Wall Panelling Details
Accurate Wall Panelling Details DWG AutoCAD drawings help architects and contractors understand how panels, backing materials, trims, battens, fixings, joints, skirting, ceilings, doors, and adjacent finishes should be coordinated.
A wall panel may appear straightforward on an interior elevation, but the actual construction can involve several layers and connection details.
Incorrect dimensions or poorly coordinated joints can result in uneven panel spacing, misaligned grooves, exposed fixings, poor corner transitions, conflicts with electrical outlets, or gaps around doors and ceilings.
Detailed CAD drawings reduce these risks by showing how the complete panelling system should be assembled.
Download Wall Panelling Details DWG AutoCAD
Proper Wall Panelling Details DWG AutoCAD drawings are essential for accurately coordinating panel modules, decorative finishes, joint spacing, wall dimensions, edge conditions, fixing zones, and transitions with adjacent architectural elements within interior fit-out projects. Architects, interior designers, joinery contractors, fit-out specialists, quantity surveyors, BIM coordinators, and CAD technicians must carefully coordinate panel widths, heights, alignment, material finishes, floor and ceiling levels, and adjoining wall conditions to achieve a clean, consistent, and constructible wall panelling installation.

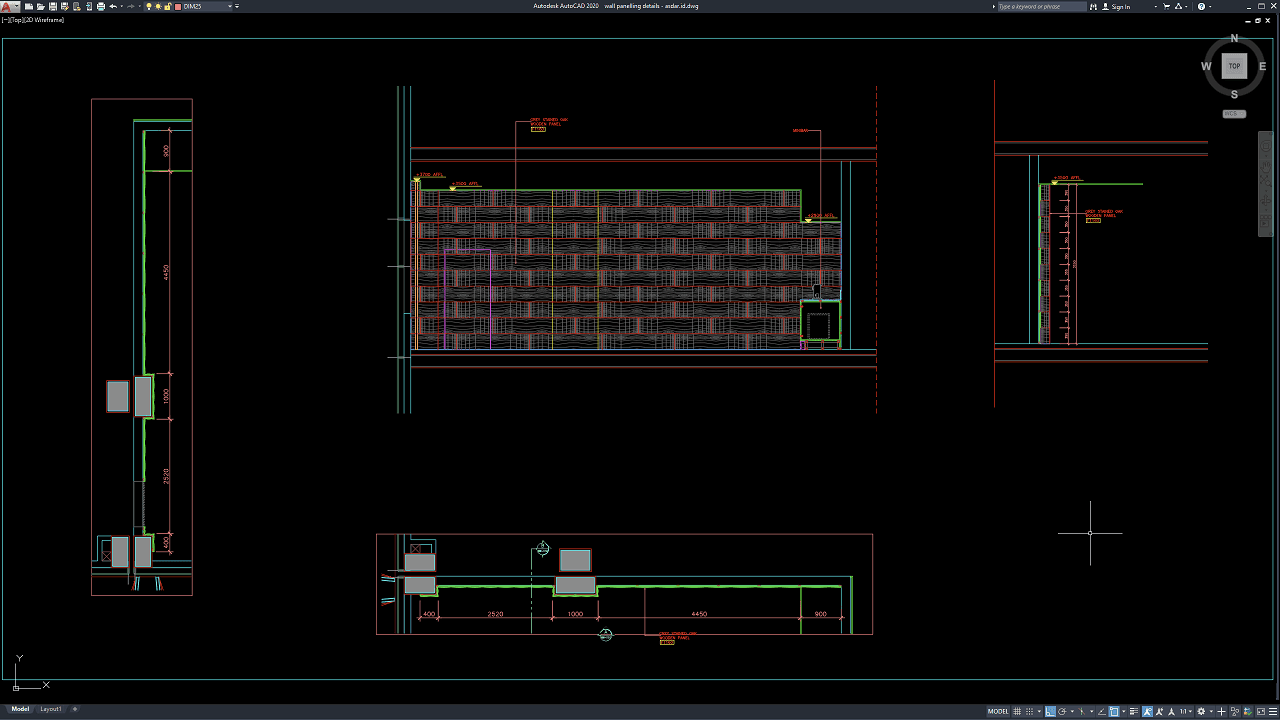

Detailed drawings such as wall panelling elevations, panel layout plans, vertical sections, edge details, joint arrangements, material callouts, and dimensional references help design and construction teams understand the complete wall finish before fabrication and installation begin. As shown in the drawing, the CAD sheet includes a large wall elevation featuring a repeated modular panelling pattern with horizontal and vertical divisions, together with a material note identifying a grey stained oak wooden panel finish. The drawing also contains side and plan views, vertical level references, panel dimensions, and detailed setting-out measurements for coordinating the panelling with the surrounding interior space.
Incomplete or inaccurate Wall Panelling Details may result in irregular panel spacing, misaligned joints, inconsistent module sizes, poorly resolved edges, conflicts with adjacent architectural elements, fabrication errors, and costly interior rework. Accurate architectural and joinery drawings, together with proper coordination between architects, interior designers, fabricators, contractors, quantity surveyors, and site teams, are therefore important for achieving a visually consistent, durable, and professionally finished wall panelling system.
Detailed AutoCAD DWG files also allow designers and contractors to review and modify panel dimensions, module arrangements, joint positions, material finishes, wall lengths, vertical levels, and other interior construction details according to specific architectural and fit-out requirements. The drawing shown provides a practical reference for wall panelling design, wooden panel detailing, interior elevation planning, custom joinery coordination, decorative wall construction, fit-out documentation, and architectural drafting.
