Proper Bridge Retaining Wall Reinforcement Details DWG AutoCAD drawings are essential for designing stable retaining structures that support bridge approaches, road embankments, elevated highways, and other transportation infrastructure. These drawings provide valuable references for structural engineers, civil engineers, bridge designers, contractors, and construction professionals who need to coordinate reinforced concrete walls, foundations, reinforcement bars, drainage systems, and structural dimensions.
Bridge retaining walls are designed to resist lateral earth pressure while supporting surrounding soil and protecting bridge approach areas. Accurate reinforcement detailing is therefore important for maintaining structural stability, controlling cracking, and achieving long-term durability.
What Is a Bridge Retaining Wall?
A bridge retaining wall is a structural wall designed to hold back soil or other materials around a bridge or roadway. It is commonly used near bridge approaches, abutments, embankments, ramps, and changes in ground elevation.
Depending on site conditions and structural requirements, retaining walls may use reinforced concrete, gravity wall systems, cantilever configurations, or other engineered solutions. The selected system must be designed according to soil conditions, groundwater, surcharge loads, traffic loads, and applicable structural requirements.
Function of a Bridge Retaining Wall
A bridge retaining wall can provide several important functions in transportation infrastructure:
- Retain soil behind bridge approaches
- Stabilize road embankments
- Reduce required construction space
- Protect bridge approach structures
- Manage differences in ground elevation
- Support roadway and pavement areas
- Reduce soil movement and erosion
- Improve overall site stability
Proper reinforcement and foundation design are essential because the wall must resist both vertical and lateral structural forces.
Download Bridge Retaining Wall Reinforcement Details DWG AutoCAD
Proper Bridge Retaining Wall Reinforcement Details DWG AutoCAD drawings are essential for ensuring the structural strength, stability, and durability of retaining walls used along bridge approaches, highways, railway bridges, overpasses, and other transportation infrastructure. Engineers and contractors must carefully coordinate the retaining wall stem, footing, reinforcement bars, foundation dimensions, and structural connections to create a safe and reliable support system.

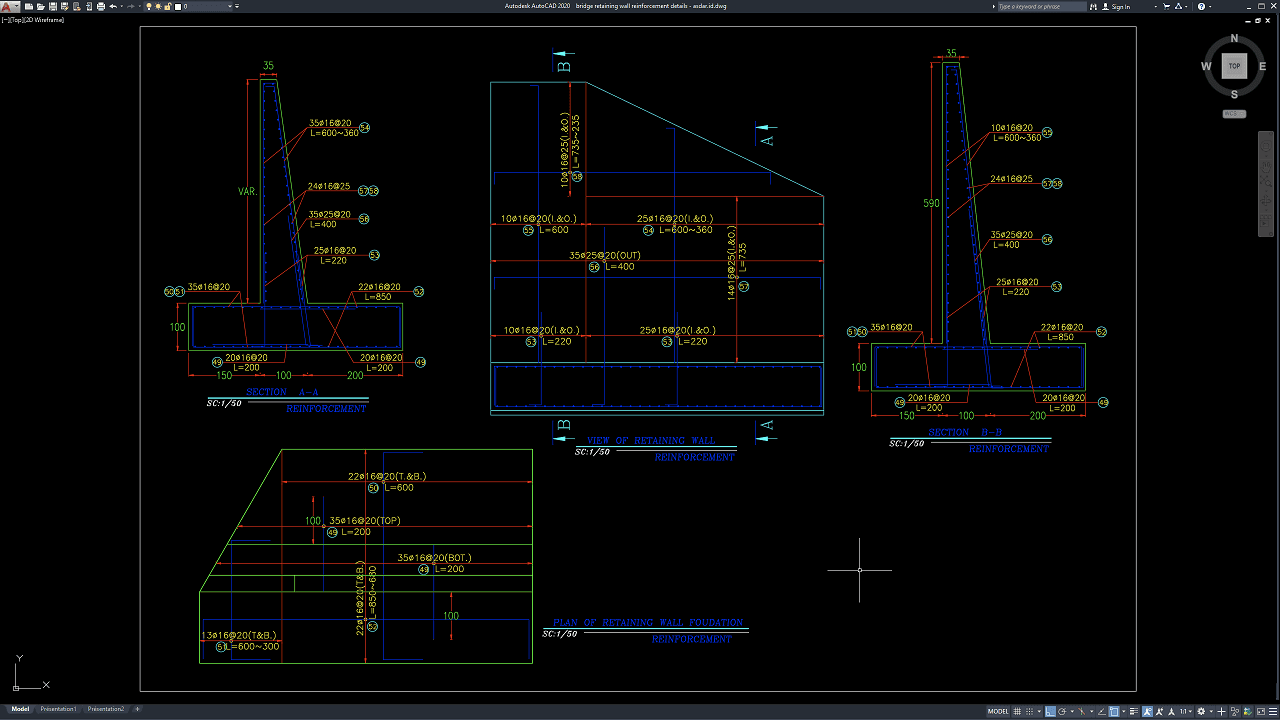

Detailed drawings such as retaining wall elevations, longitudinal and cross sections, foundation plans, reinforcement layouts, rebar spacing, bar lengths, concrete dimensions, and engineering annotations help construction teams understand the structure before work begins. As shown in the drawing, the CAD layout includes retaining wall views, reinforced concrete sections, foundation reinforcement, vertical and horizontal rebar arrangements, dimensional references, and labeled reinforcement details, providing a practical reference for retaining wall construction.
Incomplete or inaccurate Bridge Retaining Wall Reinforcement Details may lead to improper rebar placement, insufficient structural capacity, concrete cracking, foundation problems, construction conflicts, and increased maintenance costs. Accurate drawings and proper coordination between structural engineers, civil engineers, and contractors are therefore important for construction accuracy, structural integrity, safety, and long-term bridge performance.
Detailed AutoCAD DWG files also allow engineers to modify and adapt the design according to project specifications and construction standards. The drawing file shared in this article is available in DWG AutoCAD format and can be used as a reference for steel structure and construction projects. This file is compatible with various AutoCAD versions and can be edited according to your project requirements and technical standards.
