Hello, architects, civil engineers, architectural designers, contractors, construction professionals, CAD drafters, and architecture students. In this article, we provide a useful reference for Guard House Plan, Elevation and Section Details DWG AutoCAD.
This CAD drawing can help you understand the architectural layout, building dimensions, façade design, and construction components of a guard house. It is suitable for studying security building layouts and developing architectural documentation for residential, commercial, industrial, and institutional projects.
What Is a Guard House?
A guard house is a small building designed to accommodate security personnel responsible for monitoring and controlling access to a property or facility. It is commonly located near entrances, gates, parking areas, residential complexes, office buildings, industrial sites, and other controlled-access locations.
A guard house typically includes a working area for security personnel, doors and windows for convenient access and visibility, and a roof that provides protection from weather conditions. Depending on the project’s requirements, it may also include electrical installations, lighting, communication equipment, surveillance systems, and access control devices.
Architectural drawings are important for planning the guard house layout, determining room dimensions, coordinating building components, and preparing construction documentation. The DWG AutoCAD format allows designers and CAD technicians to review drawing geometry, dimensions, and annotations using compatible CAD software.
Functions of a Guard House
A guard house serves several important purposes in building design and site security. Its layout should support the daily activities of security personnel while maintaining clear visibility of the surrounding access area.
1. Access Control and Security Monitoring
The guard house provides a designated location for personnel to monitor people and vehicles entering or leaving a property. Its position, window arrangement, and internal layout should support effective observation of the entrance and nearby circulation routes.
2. Shelter for Security Personnel
The building provides a protected workspace for guards during their shifts. Appropriate roof construction, wall materials, ventilation, and lighting can help create a comfortable environment for routine security activities.
3. Organization of Entrance Operations
A strategically positioned guard house can help coordinate visitor registration, vehicle inspections, communication, and entry procedures. Its design should consider the relationship between the building, entrance gate, pedestrian route, and vehicle access.
4. Support for Security Equipment
The building can accommodate lighting controls, communication devices, CCTV monitoring equipment, and other security-related installations. Electrical outlets, cable routes, and equipment locations should be coordinated with the architectural layout.
5. Integration with Site Architecture
A guard house forms part of the overall entrance design. Its proportions, façade materials, roof profile, doors, and windows should complement the surrounding buildings and landscape while meeting functional requirements.
Download Guard House Plan, Elevation and Section Details DWG AutoCAD
Detailed Guard House Plan, Elevation and Section Details DWG AutoCAD drawings provide useful technical references for understanding the architectural layout, building dimensions, façade design, and construction details of a small security building. These drawings are particularly useful for architects, civil engineers, structural engineers, contractors, CAD technicians, and construction professionals involved in residential developments, commercial properties, industrial facilities, and controlled-access areas.

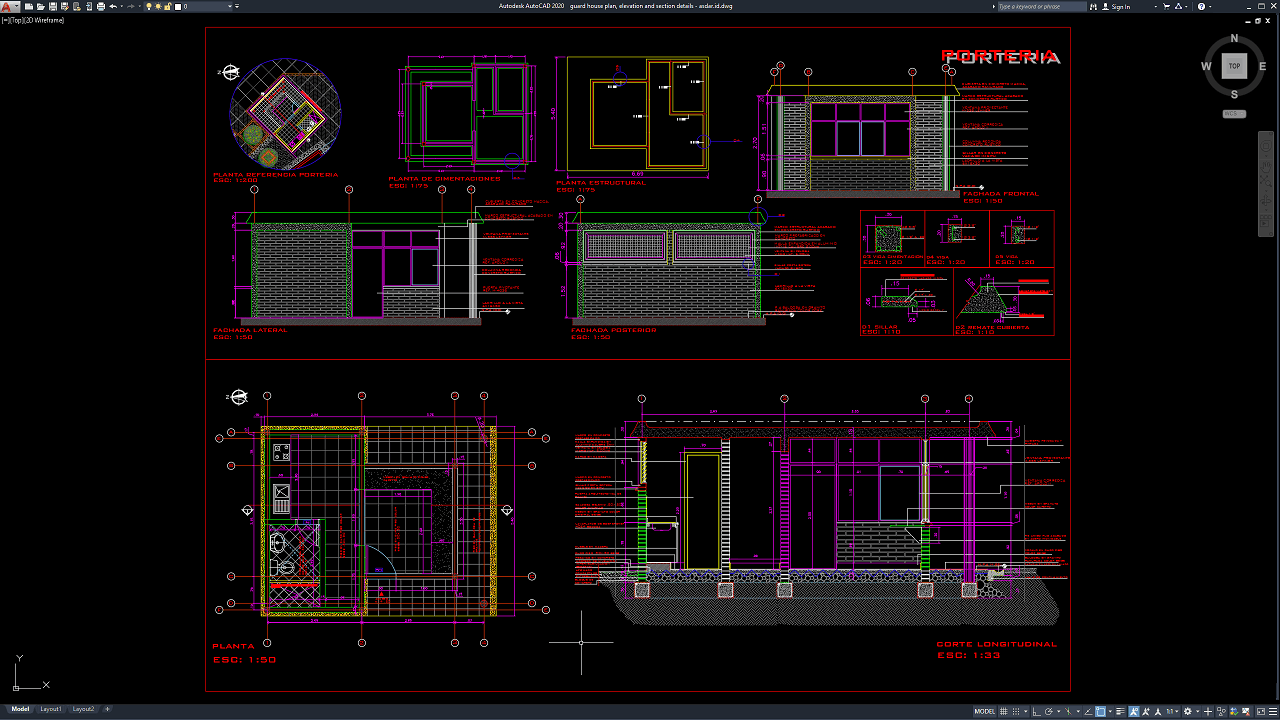

As shown in the drawing, the CAD sheet presents guard house floor plans, dimensioned plans, front and side elevations, a rear elevation, a longitudinal section, and selected construction details. The floor plan illustrates the internal room arrangement, entrance location, door and window openings, and sanitary fixtures. The elevation views show the exterior façade, masonry wall finishes, window configurations, roof profile, and overall building proportions. The longitudinal section reveals the vertical arrangement of the roof, walls, floor layers, and supporting foundation elements. Additional details provide information about selected building components and construction materials, supported by dimension lines, annotations, and technical references.
These drawings provide a practical reference for reviewing the guard house layout, room dimensions, opening positions, roof configuration, and basic structural arrangement. The floor plan helps users understand the organization of the interior space, while the front, side, and rear elevations communicate the building’s exterior appearance and architectural proportions. The longitudinal section offers a clearer view of the relationships between the roof structure, walls, floor construction, and foundation. Together, these views can support architectural design development, structural coordination, site planning, and the preparation of construction documentation for a security facility.
Detailed AutoCAD DWG files allow architects, engineers, contractors, and CAD technicians to review and adapt the floor plan, façade design, roof arrangement, wall openings, sanitary layout, and construction details according to project requirements. The drawing serves as a useful reference for guard house floor plans, security building design, guard house elevations, building section details, guard house construction drawings, security post architecture, masonry wall details, roof construction details, foundation sections, and AutoCAD architectural plans.
Before construction, all dimensions, material specifications, structural connections, foundation requirements, ventilation provisions, and building services should be verified against the actual site conditions, project specifications, and applicable building regulations. The drawing should be treated as a design reference and reviewed by qualified professionals before implementation.
This drawing is provided in .dwg format, which means you can open it directly using the latest version of AutoCAD or an older version, such as AutoCAD 2004. You can also edit the drawing to modify it according to your preferences or design requirements. Please note that the annotations in the drawing are written in Spanish. You may need to translate them into English or your preferred language to understand the details clearly.
